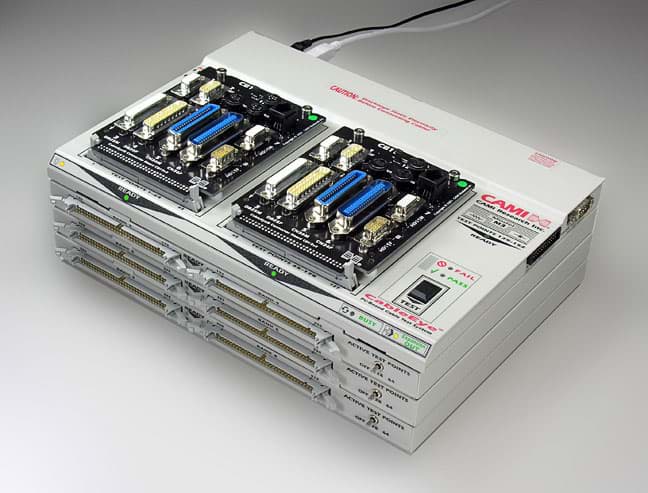

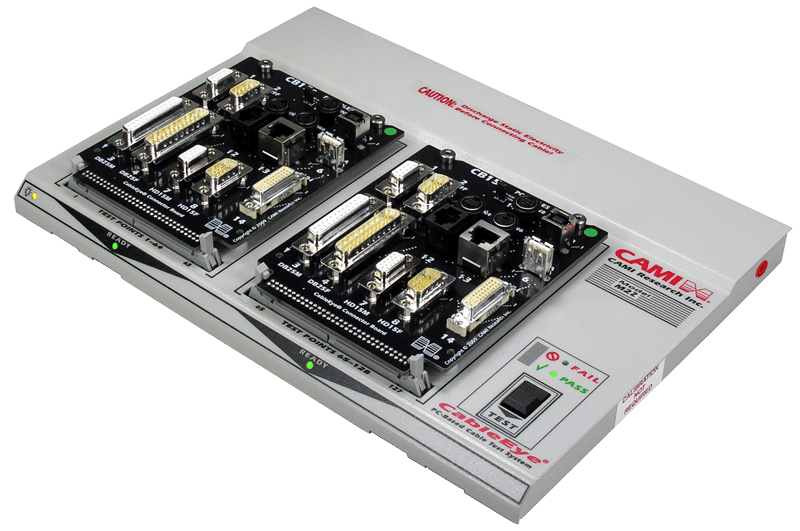

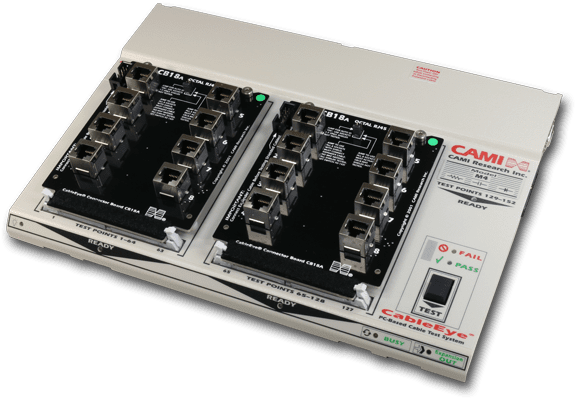

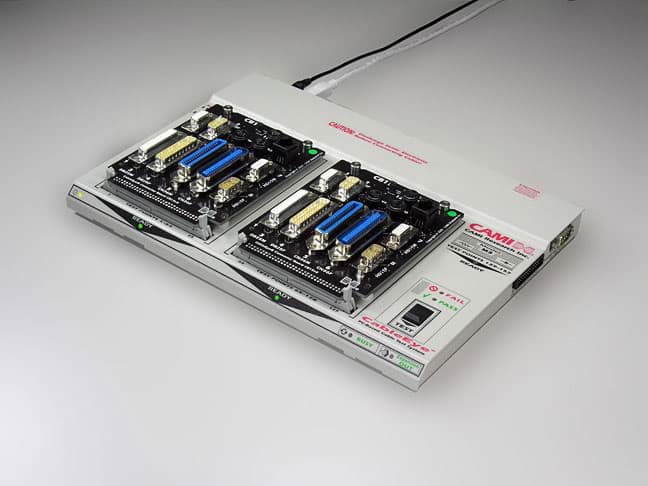

Low Voltage Cable Testers M2Z, M3Z, M4
All testers ship with standard operating software, probe, CB-T2.
  • Scan for Continuity (Opens, Shorts, Miswires, Intermittent Connections)
  • Measure above, resistance, and check quality of intended connections and non-connections (M3-series and M4)
  • Measure all above, capacitance, twist pair relationships, wire/cable length, and length to fault (open/short). (M4)
  • Dynamic, graphic-rich Netlist/Wiring display:
    • Confirm diode orientation
    • Set asymmetric tolerances in absolute or %
    • Over 500 connector graphics included
  • Out-of-the-box, customizable & printable color reports
  • Multilingual navigation screens, reports & labels
  • PASS/FAIL check or diagnostic GUI screens - your choice
  • Quick-change, automatically-detected CB boards:
    • Over 60 different stock boards accommodate well over 200 standard connector types
    • Universal CB8 board for prototyping and circular connectors, or CB28 for bare wires
  • All control modules, except the M2Z, handle cables of up to 76 conductors and are expandable:
    • Layer one or more 128-point expansion modules under control module, to accomodate larger cables
    • M2Z control module handles cables of up to 64 conductors and is not expandable
Only on stock
Weight
2.83 kg
Dimensions (mm)
260.00 x 100.00 x 320.00 (W/H/L)
Weight
0.87 kg
Dimensions (mm)
250.00 x 100.00 x 370.00 (W/H/L)
Weight
0.40 kg
Dimensions (mm)
210.00 x 100.00 x 300.00 (W/H/L)
Weight
0.87 kg
Dimensions (mm)
225.00 x 70.00 x 315.00 (W/H/L)
